Large raw material mixer

The large mixers are all laser finishing parts, the auger is 5mm away from the bottom of the silo, and the large gears are used and the European standard is silent and energy-saving Set into a large production line. (Stainless steel material can be customized) design, effectively buffer the motor load, the stirring dragon is a positive and reverse ribbon structure, the mixing is more uniform, and it can be matched with the bagging machine

1. Performance structure characteristics

The whole machine adopts multi-stage transmission reduction, low energy consumption, high transmission efficiency and low maintenance cost. The laser process is used to process parts, and the gap between the agitator is 5mm from the bottom of the silo and the discharge is clean, effectively reducing the time and difficulty of manual cleaning. The conventional auger is a positive and reverse ribbon structure, which is stirred evenly, has a wide force surface and a long service life

2: Scope of use

It is suitable for mixing granular raw materials in the edible fungus industry. It can also be used in organic fertilizer production and aquaculture.

3: production process

Feeding → stirring

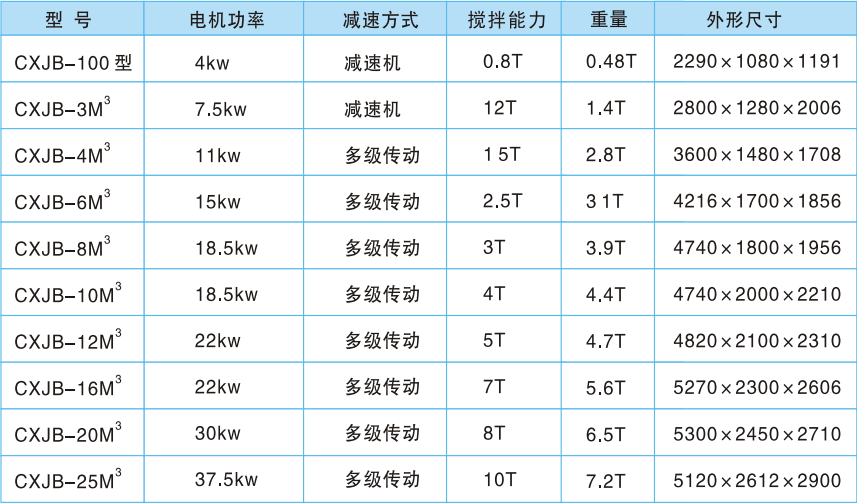

4: Technical parameters

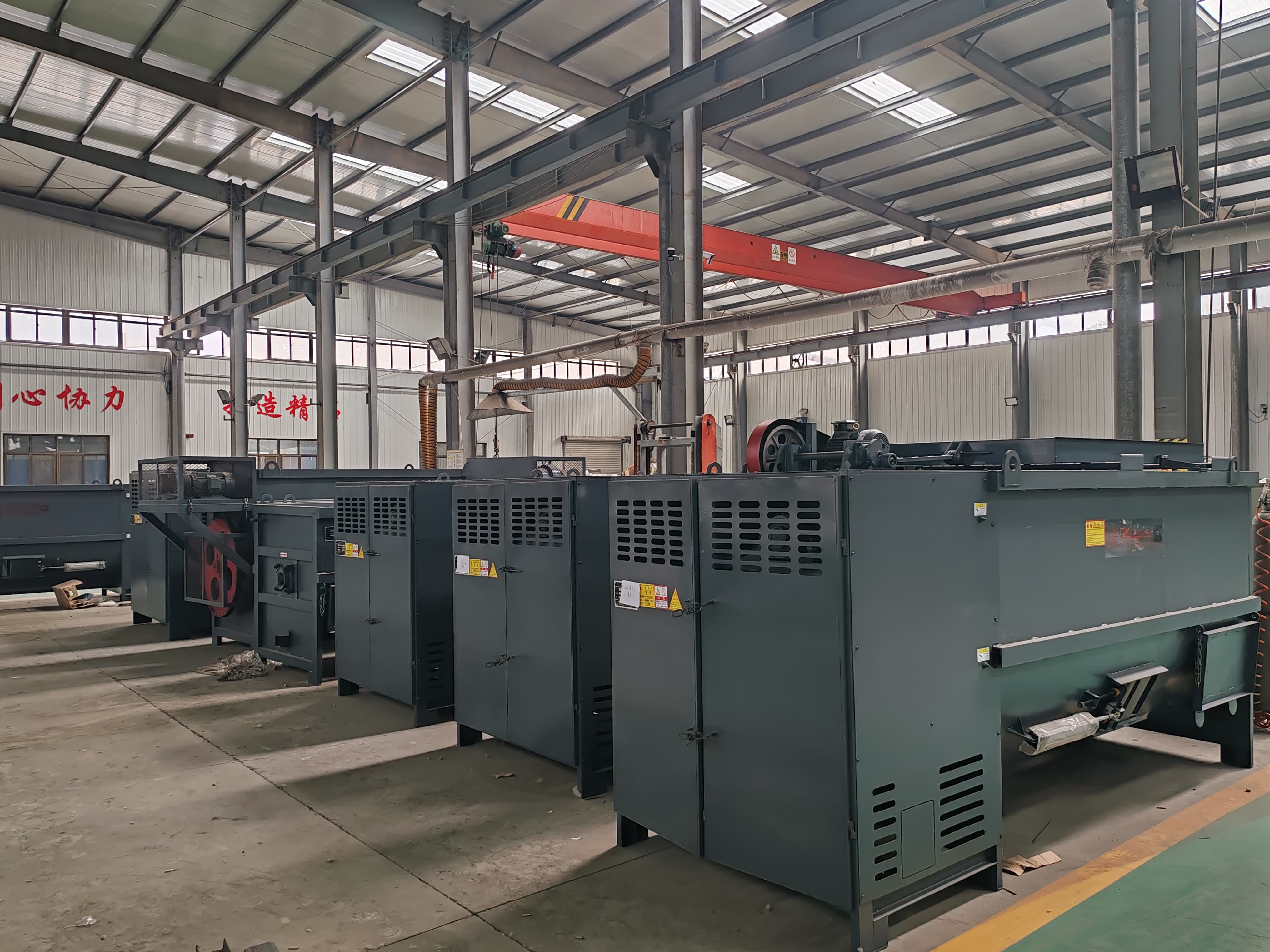

5. Product display

6. Mature team
