Location：Product - 600 type wood chip grinder

600 type wood chip grinder

The machine adopts the cutterhead hammer structure, which can handle φ≦ 180mm wood, and has a built-in 8mm-20mm replaceable screen, which can be sliced and crushed at one time. Made of steel plate, the hammer blade can be adjusted to reuse to extend the service life, and the power is optional motor or diesel engine. It is suitable for wood crushing in the edible fungus industry, and operates according to the feeding → crushing process, efficiently meeting the needs of raw material processing.

1. Main properties and structural characteristics:

①. The machine adopts the cutterhead hammer structure, which is used to φ≦ 180mm wood, with built-in replaceable screen (hole diameter 8mm-20mm), and is crushed and formed by slicing at one time.

②. Steel plate material, hammer blade adjustment direction can be reused to improve service life.

③. The power ratio can be equipped with a motor or a diesel engine.

2. Scope of application

It is suitable for crushing wood and other materials, and is used in the edible fungus industry.

3. Production process

Feeding → crushing

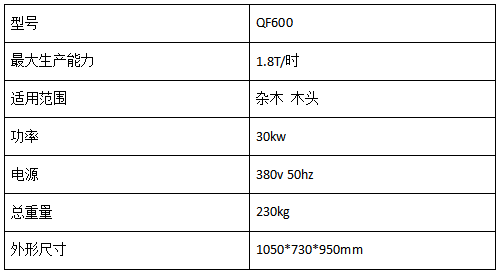

4. Technical parameters

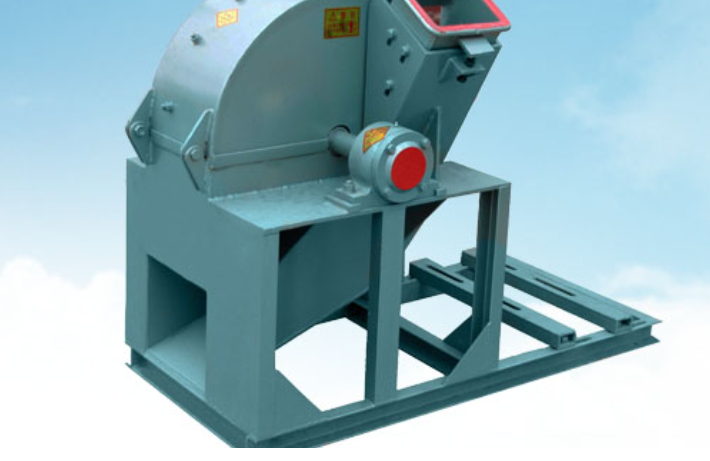

5. Product display

6. Mature team
