500 type wood shredder

The machine adopts a cutterhead hammer structure, which can handle φ≦140mm wood, and has a built-in 8mm-20mm replaceable screen, which can be sliced and crushed at one time. The steel plate material is equipped with a fixed knife, a moving knife, and the hammer blade can be reused to extend the life, and the power can be selected as a motor or diesel engine. It is suitable for wood crushing in the edible fungus industry, and operates according to the feeding → crushing process, efficiently meeting the needs of raw material processing.

1. Main properties and structural characteristics:

①. The machine adopts cutterhead hammer structure, which is used to φ≦ 140mm wood, with built-in replaceable screen (hole diameter 8mm-20mm), and is crushed and molded by one slice.

②. Steel plate material, equipped with fixed knife and moving knife, hammer adjustment direction can be reused to improve service life.

③. The power ratio can be equipped with a motor or a diesel engine.

2. Scope of application

It is suitable for crushing wood and other materials, and is used in the edible fungus industry.

3. Production process

Feeding → crushing

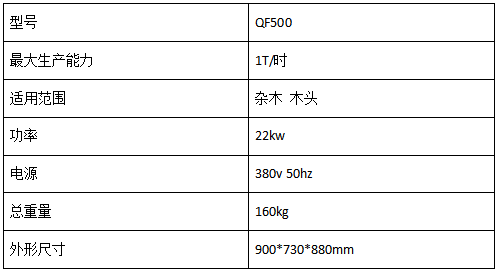

4. Technical parameters

5. Product display

6. Mature team
