1. Main properties and structural characteristics:

①.PLC efficient automatic computer control program, pneumatic action operation, automatic disinfection, punching, seed injection, seed pushing, leveling, bagging, and the whole process of simulation to complete the vaccination operation manually.

②. Replace manual vaccination work, 4 holes on one side, the amount of bacteria and the size of the hole can be adjusted; intelligent detection, fault alarm, automatic repair of operation faults, manual programming, high degree of visualization; 100-level purification device, ultraviolet and ozone double disinfection method;

③. By replacing the chain disc, 2 to 3 kinds of adjacent specifications of mushroom sticks can be connected to achieve multiple uses in one machine. High production efficiency, low labor intensity, and high inoculation accuracy

④. The device itself is equipped with FFU 100-level laminar flow hood, ozone and ultraviolet lamp, which is thoroughly sterilized, reasonable in structure and stable in performance. Disinfection, punching, seeding injection, seeding, leveling, and bagging are all using Airtac cylinders, which have a long service life.

⑤. All stainless steel body, precision processing and production technology.

⑥. The fuselage is equipped with universal and directional tugboats, which is convenient for movement and placement.

2. Scope of application

 It is suitable for automatic bagging with a flat width of 14cm-22cm and a bag length of 40cm-60cm.

3. Production process

Manually put sticks→ disinfect → punch→ inject seeds→ push seeds→ level → bag

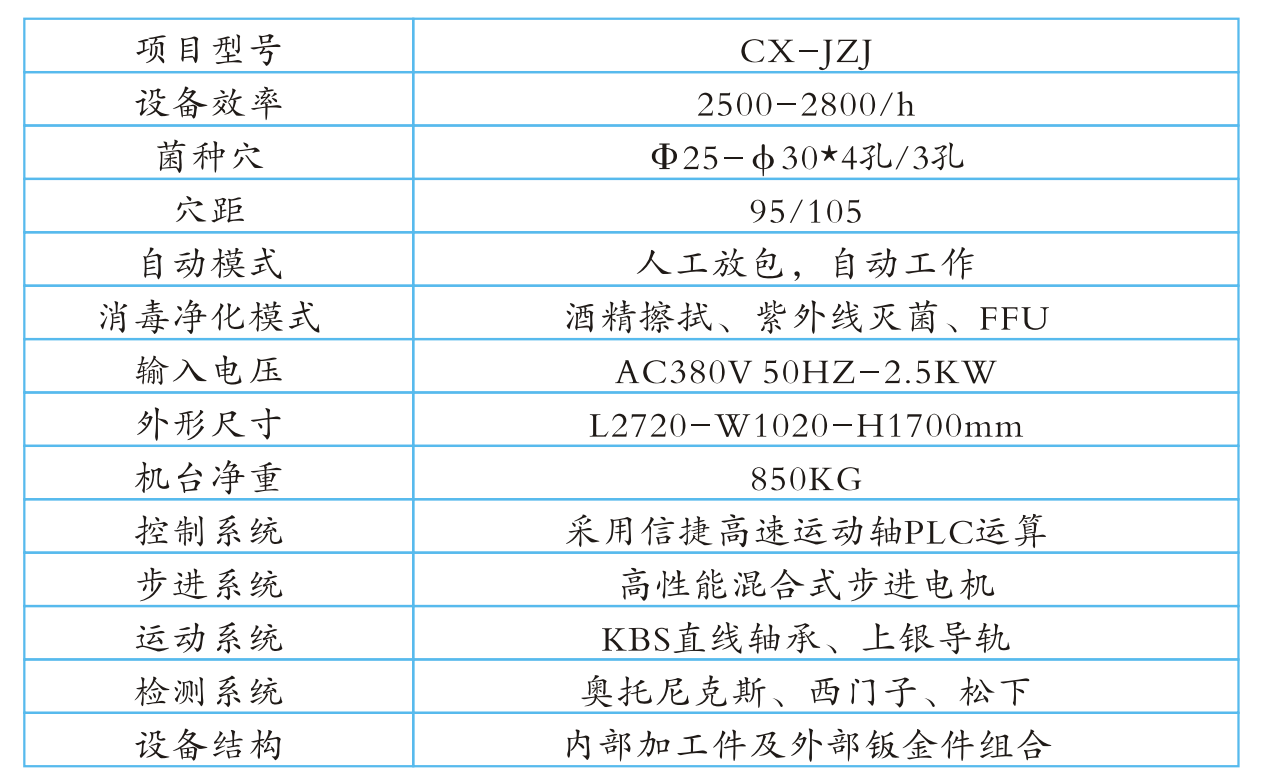

4. Technical parameters

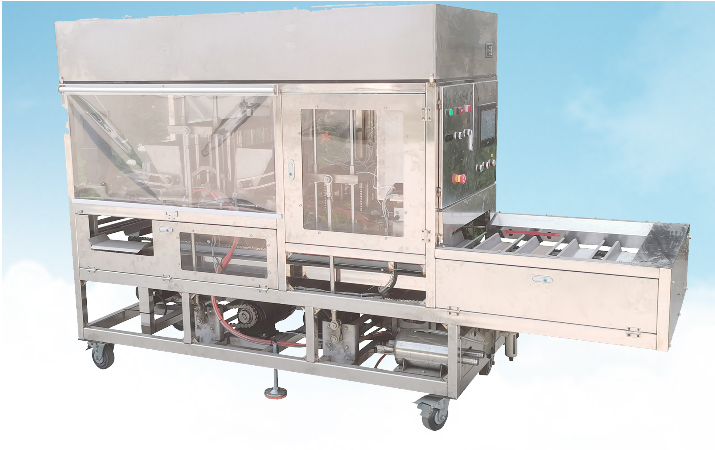

5. Product display

6. Mature team
